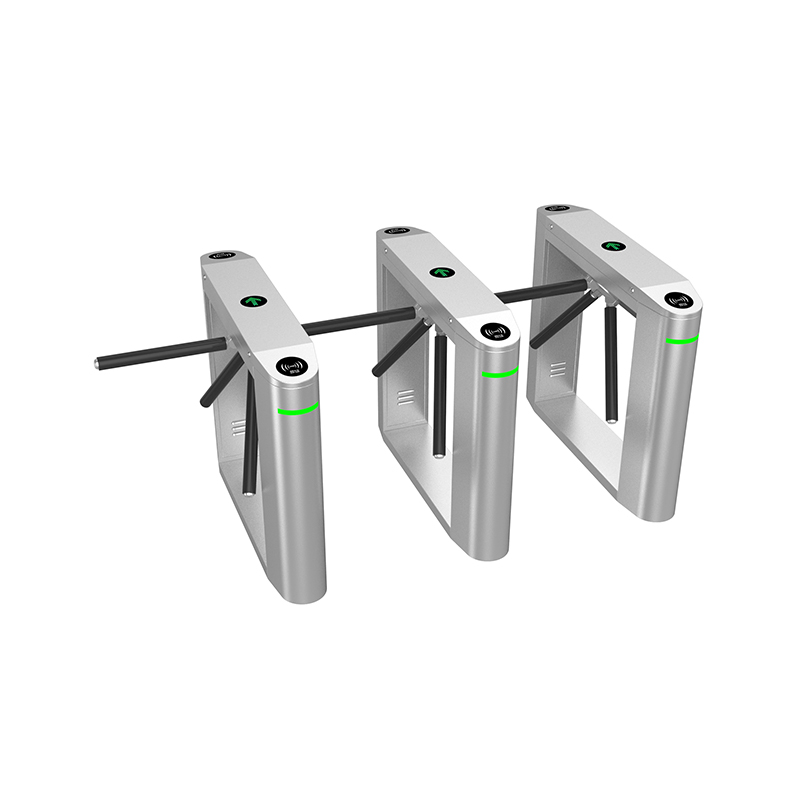

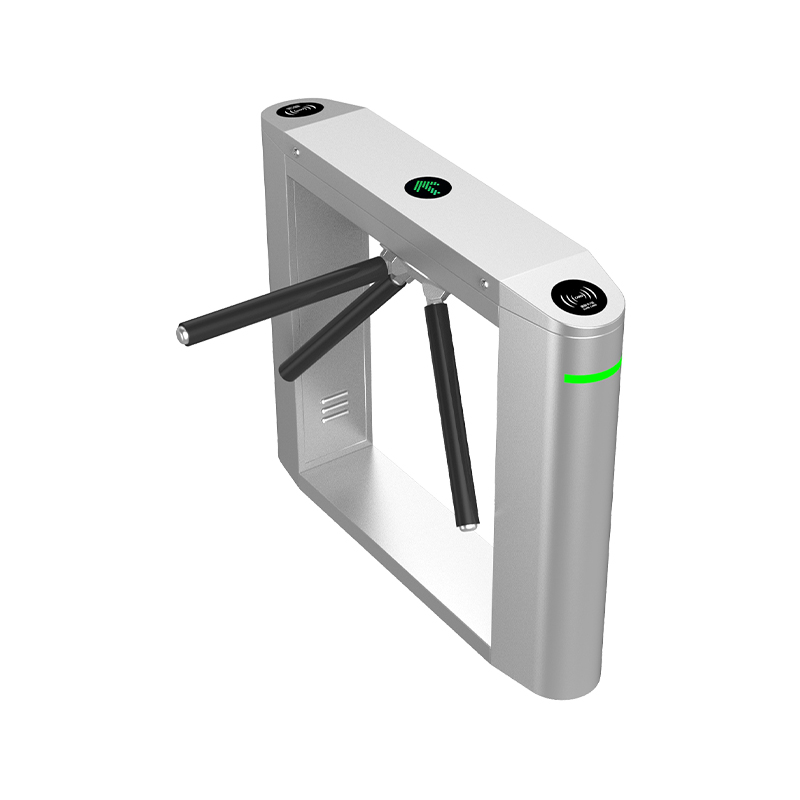

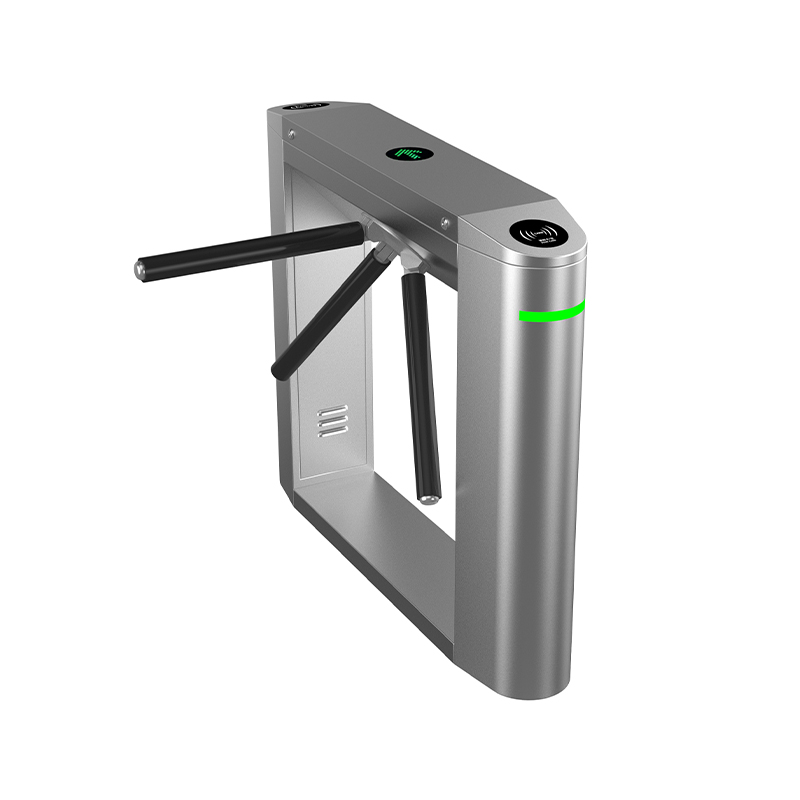

Tripod Gate T106A

KPS-TD-3105
The main modules of the equipment adopt high-life and high-stability products, which can realize the large-volume characteristics of ticket inspection scenes. It supports optional facial components, ticket control components, 7-inch LCD high-definition display screens, ID card readers, various IC/ID card readers, QR code readers, ID card readers and other peripheral access, and can provide docking information to facilitate docking with various systems. It is widely used in entrance and exit control scenes such as scenic spots, buildings, communities, universities, and venues.

Consult

Features
Technical Indicators
Overall Dimension

●The box body is made of high-quality 304 stainless steel, the thickness of the top cover is 1.2mm according to the national standard, the body is 1.0mm, and the structure is stable and solid; ●The equipment uses a brushless DC motor, self-checking on power-on, low failure rate, and ultra-long service life; ●The equipment uses a large-size LED to indicate the direction of passage, display the passage status, and personnel are authorized to pass. There are corresponding sound and light prompts for illegal push rods; ●The unique movement noise reduction design and the low-noise operation of the fully automatic movement improve the passage experience; ●Only authorized and verified users can pass. When an unauthorized user breaks into the push rod, the corresponding angle will be buffered and the immediate reverse thrust will be activated to prevent illegal passage and sound and light alarm Warning, ● Anti-reverse, the gate control panel can detect the forward and reverse rotation after authorization through the sensor. Only forward rotation is authorized, and reverse thrust is immediately started; ● Automatic reset function: If the user fails to pass within the specified time after the permission is given, the system will automatically cancel the user's access permission for this time. The time limit for passing can be customized by the user; ● Flexible selection of normally open and normally closed modes, two-way authorization, one-way authorization, free passage, etc. The above modes can be flexibly matched; ● Pass memory function: After the gate receives several authorization signals continuously, the corresponding number of users can pass, and the number of people passing can be judged in real time until the last person passes; ● Fire linkage and emergency: It can be connected to the fire linkage signal or emergency button signal line. When receiving the signal, the gate rod will automatically drop, which meets the requirements of fire emergency; ● It has the function of automatic up and down rods. When the power is off, the rod will automatically drop to ensure the smooth passage and form an barrier-free passage; after the power is on, the gate will automatically go up to improve work efficiency; ● Personalized voice setting: There are multiple voices to set, which is convenient for customers to play specific voices after swiping the card in different places; ● Provide linkage input interface, which can realize the function of remote control of gate switch to meet the special needs of users and fire safety requirements and remote control management; ● It has fault self-checking and alarm prompt functions, which is convenient for users to maintain and use; ● It comes with leakage protector to enhance personal safety protection and facilitate on-site personnel to construct and wire. The working voltage of the relevant electrical modules of the whole machine does not exceed 24V. ● Supports optional facial components, ticket control components, 7-inch LCD high-definition display, ID card reader, various IC/ID card readers, QR code readers, ID card readers and other peripherals access
●Size: 1200mm long*220mm wide*980mm high
●Lever length: 500mm
●Material of box: 304 stainless steel, thickness of top cover is 1.2mm according to national standard, body thickness is 1.0mm.
●Material of rotating rod: 38mm diameter 304 stainless steel round tube.
●Gate movement: brushless fully automatic three-roller gate movement.
●Physical interface: RS232, RS485, left opening, right opening, fire protection interface.
●Traffic rate: 20-60 people/minute/channel, actual traffic rate is affected by personnel situation and traffic mode
●Working power: AC220V, 50/60HZ
●Power of whole machine: single channel (one group of channels) power ≤100W, Standby power <.18W
●Working temperature: -20℃~70℃
●Relative humidity: ≤90%, no condensation
●Applicable environment: indoor and outdoor
Precautions
One of the main components of pedestrian walkway products is stainless steel. Stainless steel has good rust resistance (ability to resist atmospheric oxidation) and corrosion resistance (ability to resist corrosion in media containing acid, alkali, and salt), but its corrosion resistance will change with its own chemical composition, use environment and other factors. In order to maintain the beauty of stainless steel and extend its service life, it needs to be maintained regularly.
Maintenance precautions are as follows:
1. Different specifications of stainless steel need to be selected in different use environments. 304 stainless steel can be selected in general environments, and 316 stainless steel is recommended in environments such as the seaside and chemical plants.
2. Keep the product surface clean and dry.
3. When there is dirt on the surface of the product, it can be cleaned with non-woven cloth and alcohol.
4. When rust spots appear on the surface of the product, you can use a scouring pad (remember not to use a steel wire cleaning ball) to wipe back and forth along the grain until the rust spots are removed, and then wipe the entire gate with a non-woven fabric and stainless steel maintenance agent.
5. It is necessary to regularly wipe the gate with a non-woven fabric and stainless steel maintenance agent for maintenance. Generally, it is recommended to do it once a month, if the environment is relatively harsh (such as the seaside, chemical plant, etc.), it is recommended to do it once a week.
