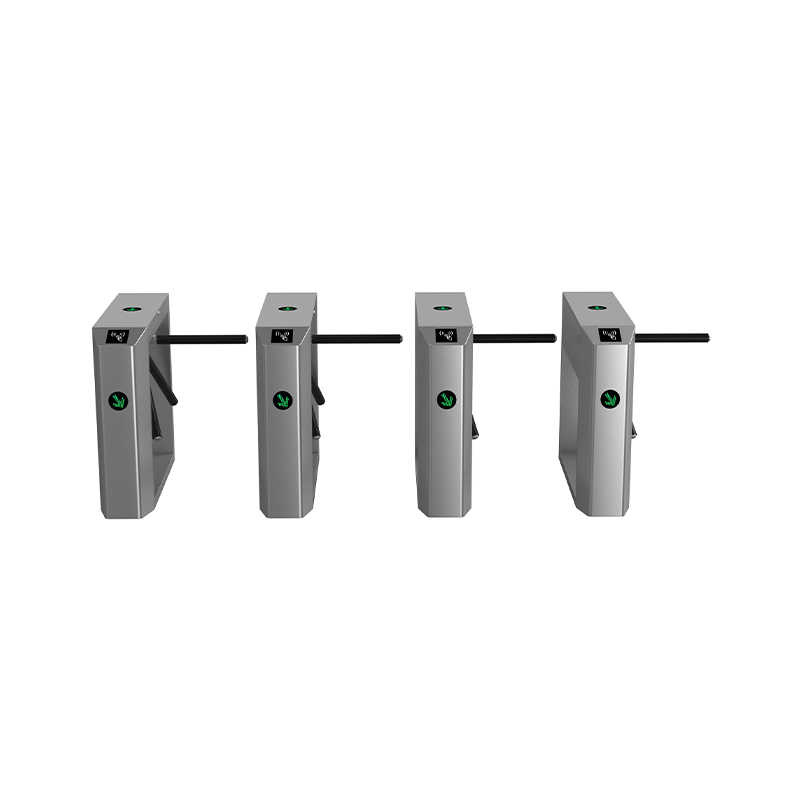

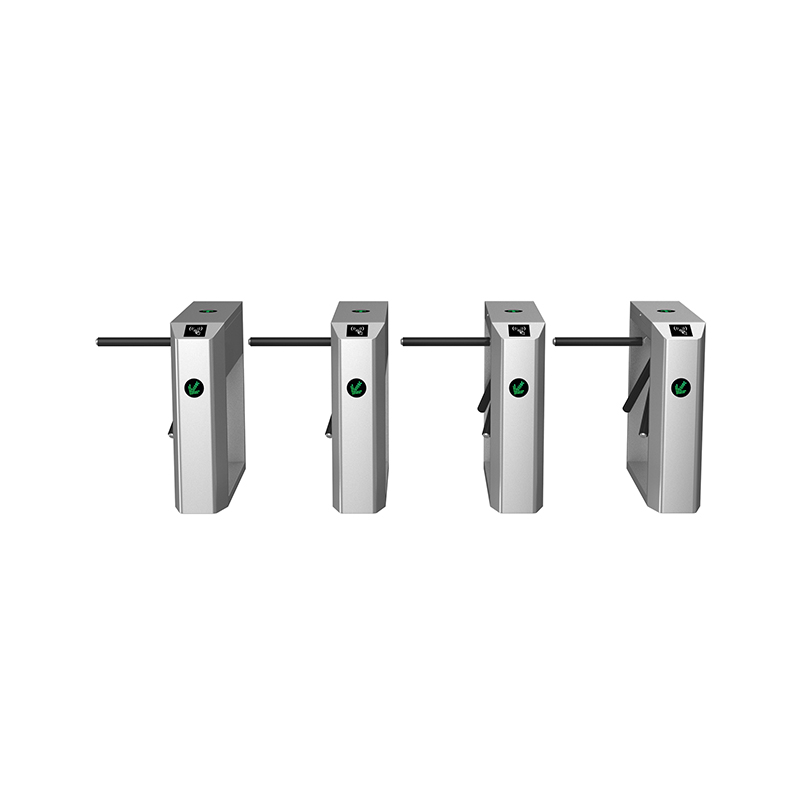

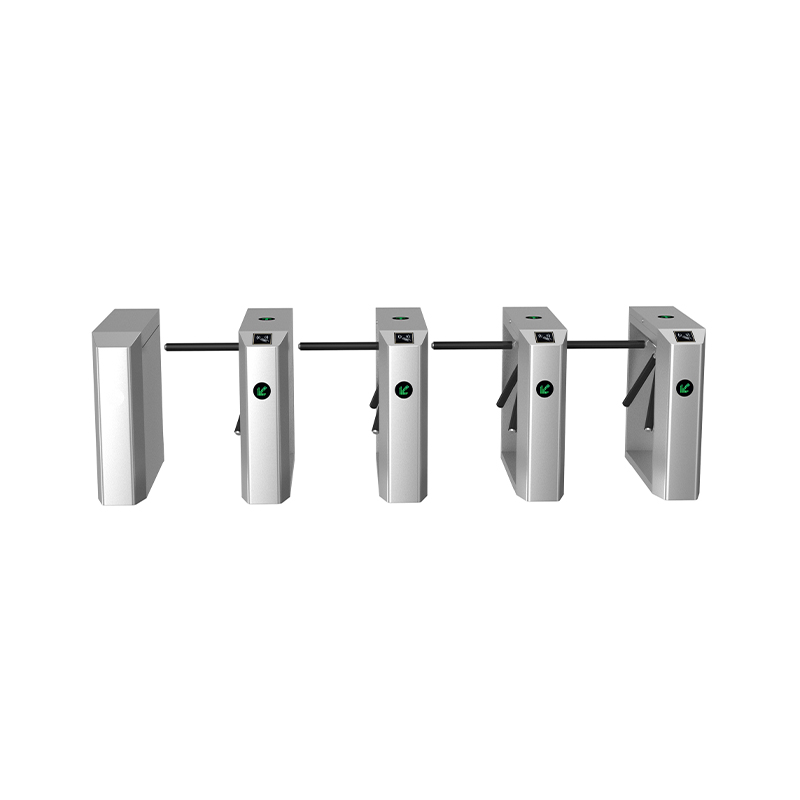

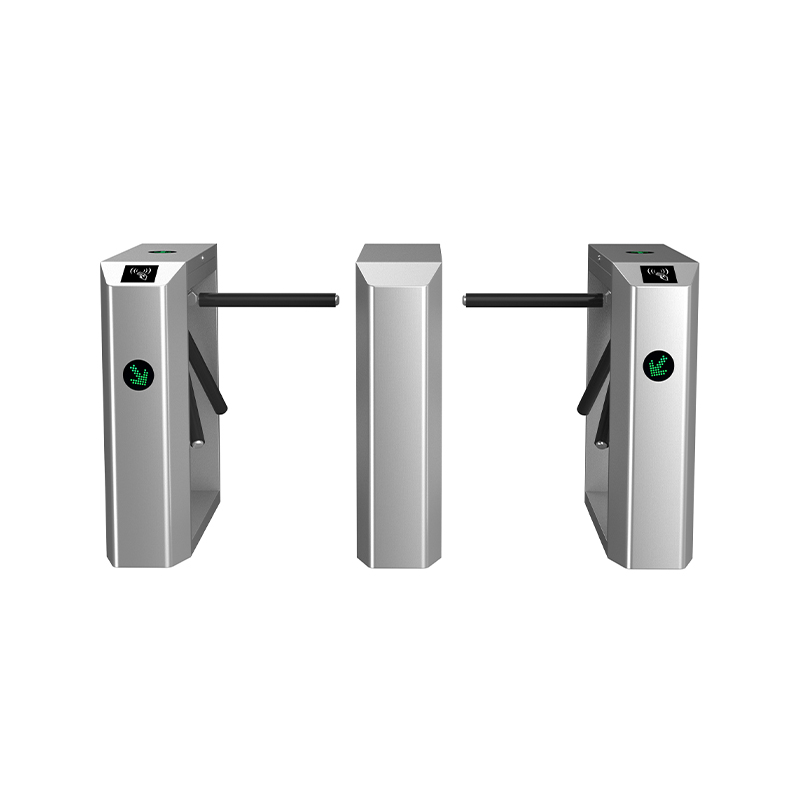

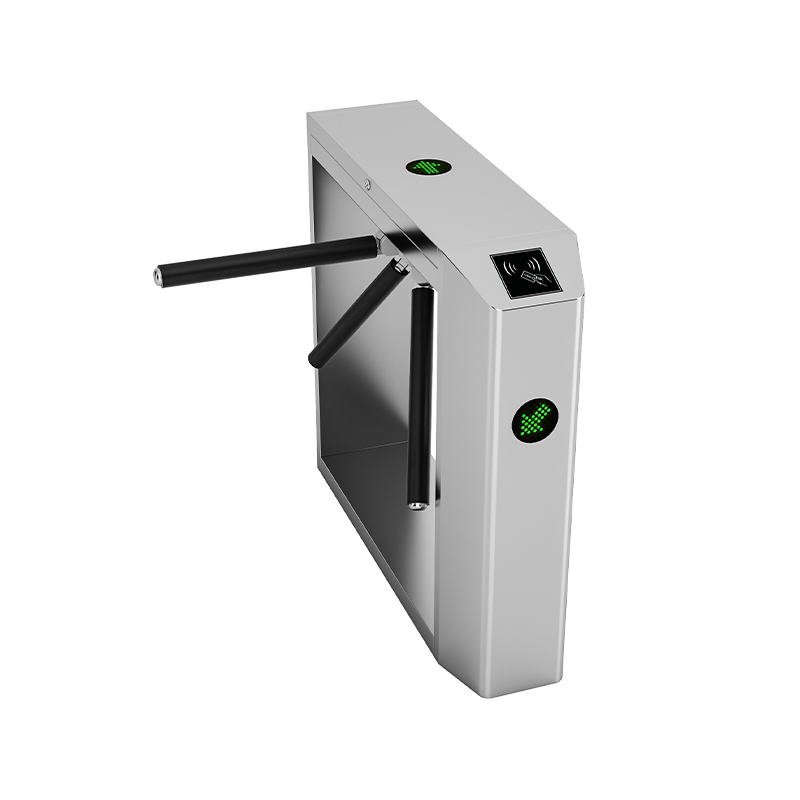

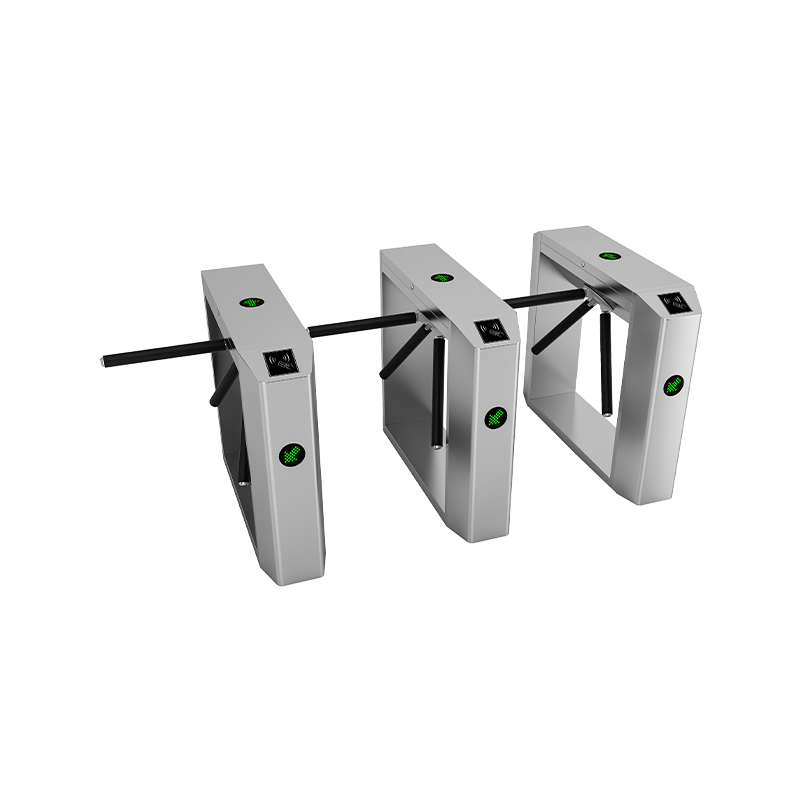

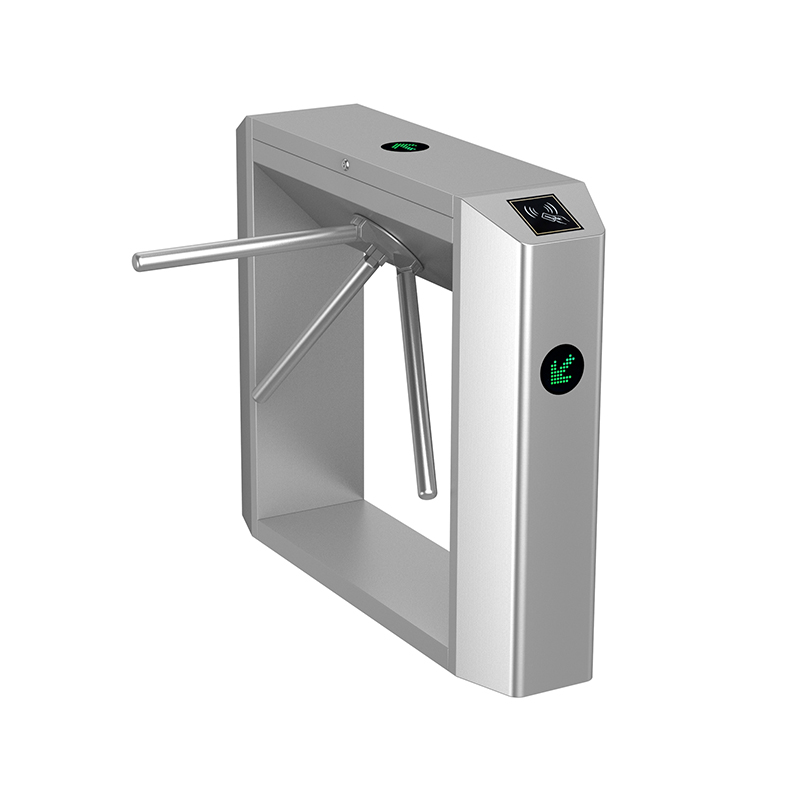

Tripod Gate T117

KPS-TD-3101
The equipment uses a hydraulic silent semi-automatic movement, which runs smoothly and has low noise. It has a six-tooth mold ratchet and a cast aluminum turntable. It has a reasonable structure, is stable and durable, and ensures the high security of the channel and the anti-tailgating and return functions, and can realize the large flow characteristics of the ticket inspection scene.

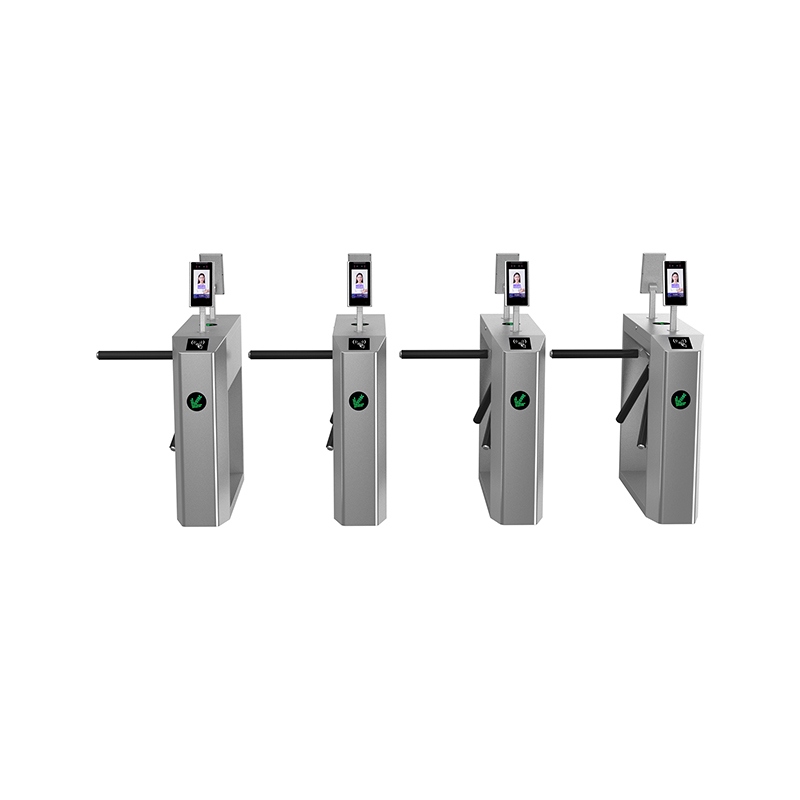

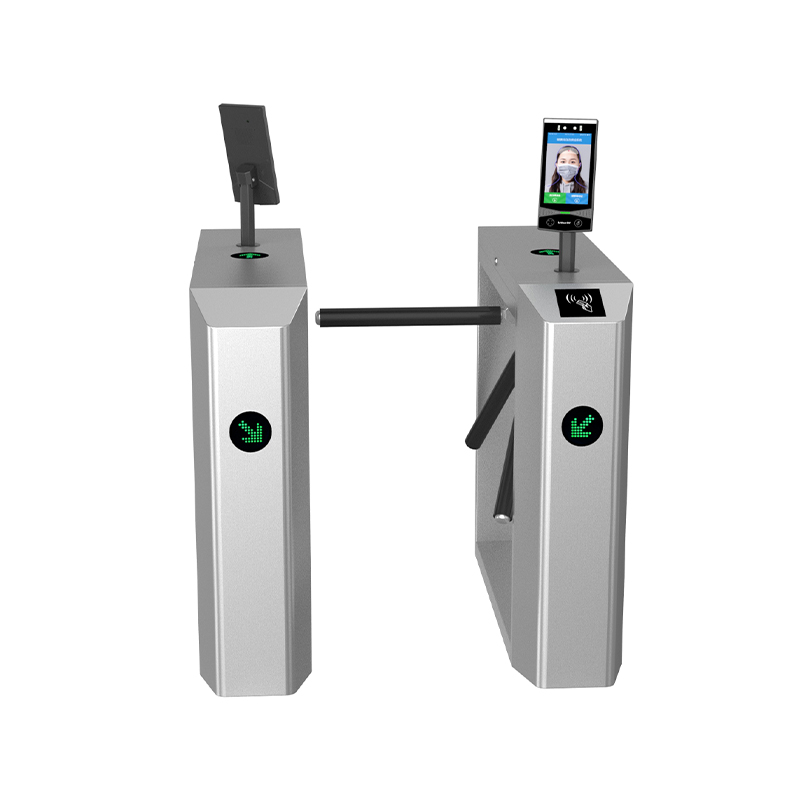

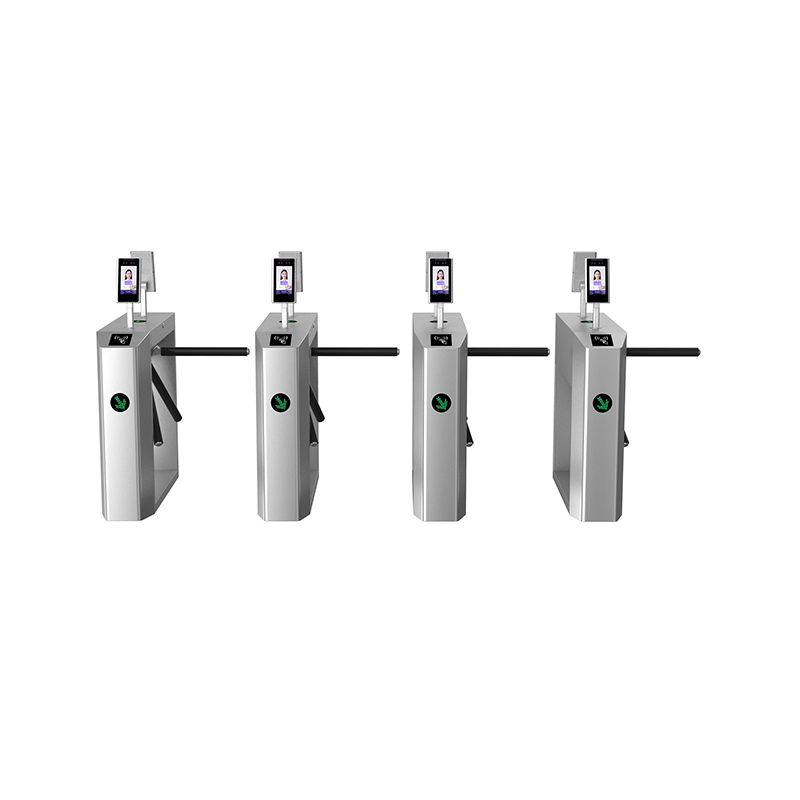

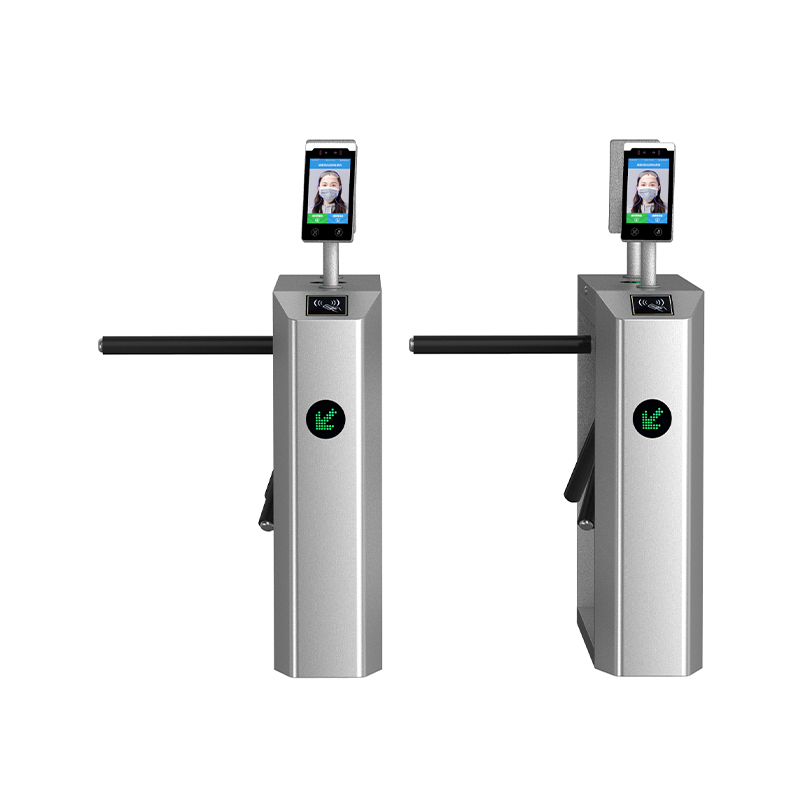

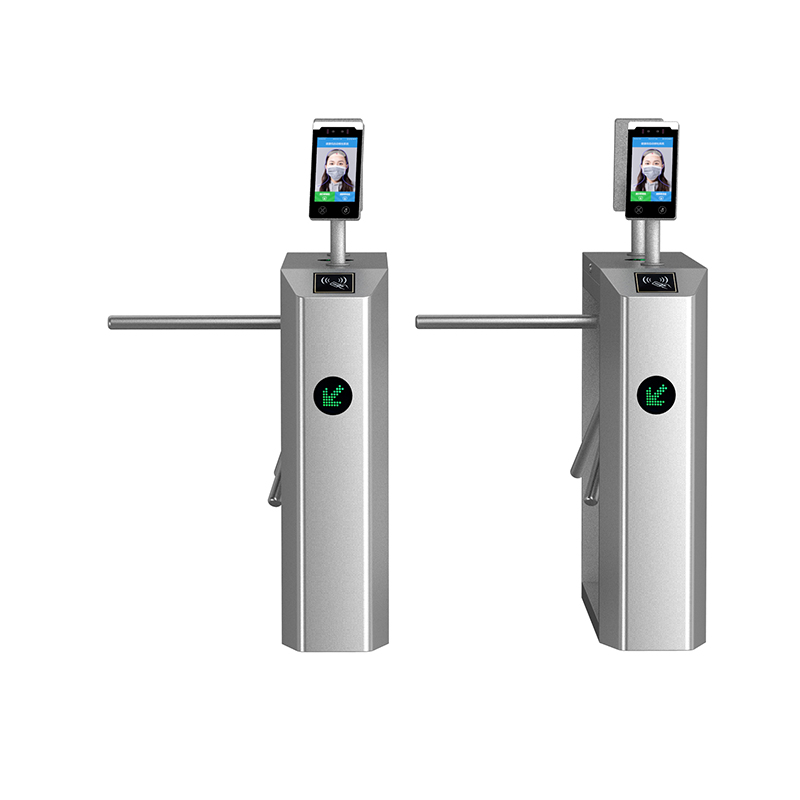

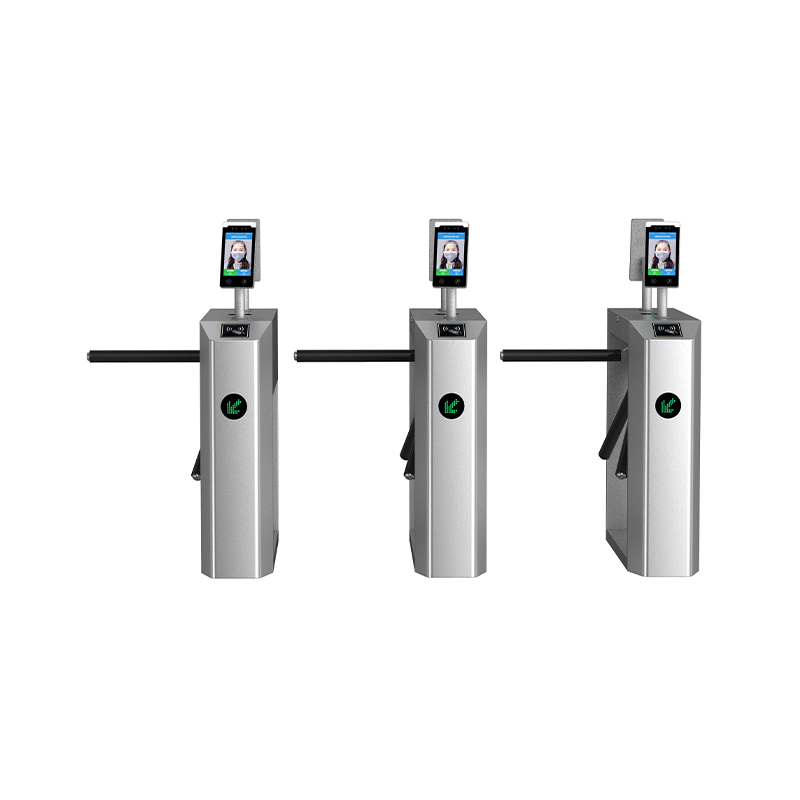

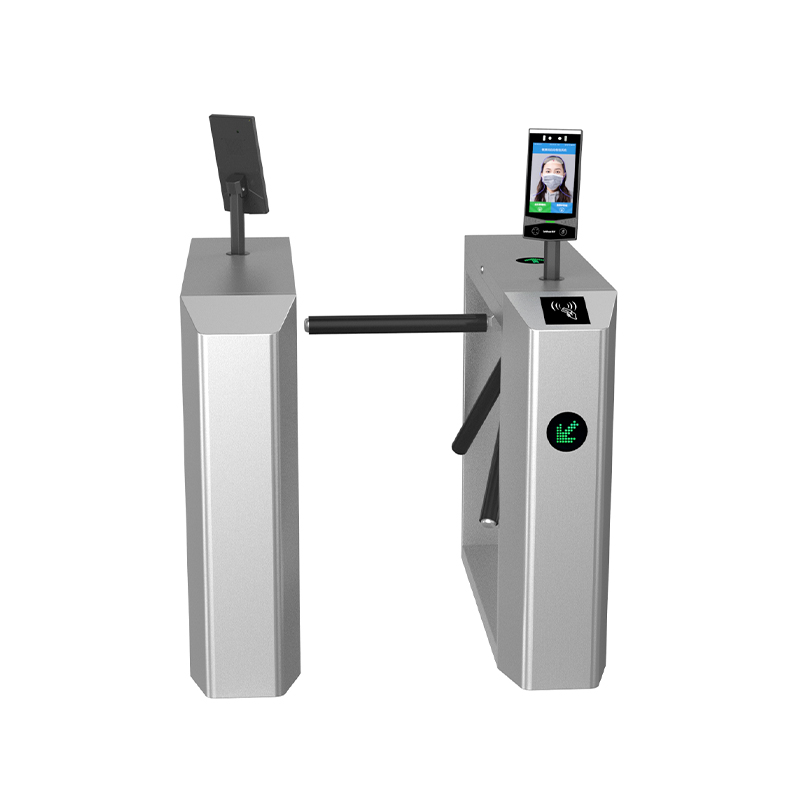

The equipment uses a standard electrical interface to the outside, and supports the access of optional facial components, various IC/ID card readers, QR code readers, ID card readers and other peripherals.

Consult

Features
Technical Indicators

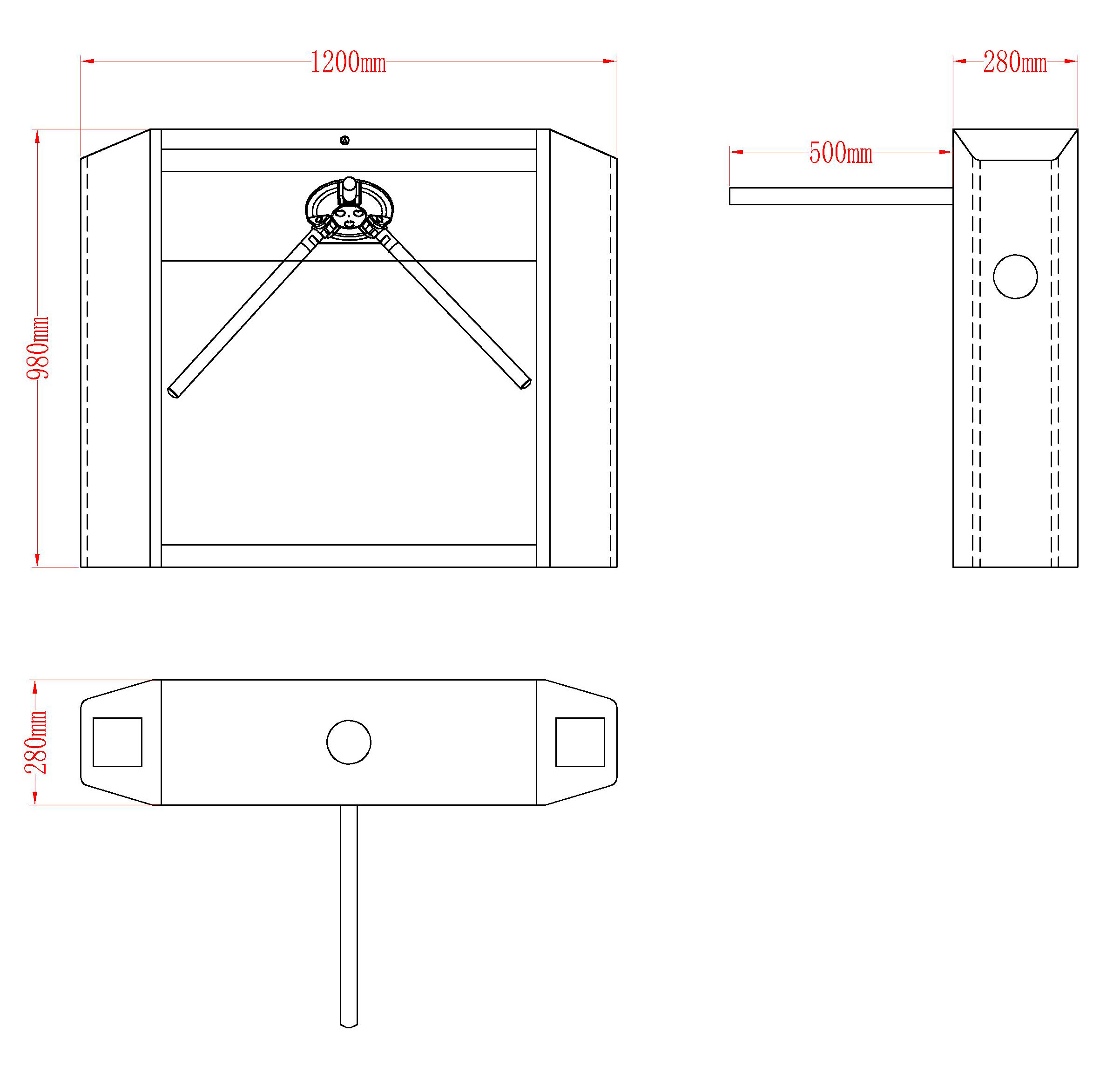

Overall Dimension

●Material characteristics: The box body is made of high-quality SUS 304 stainless steel, which is rust-proof and durable, with a stable and solid structure. ●Movement type: The movement has an automatically adjustable hydraulic shock absorber. When the turnstile is used, the noise of the turnbar in place can be significantly reduced, there is no impact, and the gate bar automatically slows down and returns to its position. ●Sound and light prompt function: The top light of the upper cover has a clear direction of passage indication function, indicating whether communication is allowed or prohibited in the form of LED light indication, the body is equipped with side lights as standard to prompt pedestrians whether this channel can pass. ●Anti-tailing function: The passage time is automatically canceled after each passage to prevent people from following. ●Anti-collision function: When the gate opening signal is not received, the gate stick is automatically locked. ●Anti-reversal device: The equipment movement has a six-tooth open mold ratchet, which can prevent the rotating unit from rotating in the opposite direction of the original direction. ●Passing memory function: It can be set whether to memorize the gate opening signal of multiple consecutive card swiping. Enable to realize the number of people who can pass through the system, for example: swipe the valid card five times, five people pass. ● Automatic reset function of authority: if the user fails to pass within the specified time after being given authority, the system will automatically cancel the user's access authority for this time, and the access time limit can be set by the user in the main board menu. ● Power-off access: With the function of power-off pole drop, in an emergency, the gate will automatically drop the pole, and pedestrians can pass quickly to meet the requirements of fire passage. ● Optional gate access mode: With two-way access function, the gate pole steering is divided into two-way and one-way, which can be set through the main board menu. ● Fire linkage and emergency: It can be connected to the fire linkage signal or emergency button signal line, and the device enters the free passage state after receiving the signal, which meets the requirements of fire emergency. ● Support optional card swiping, face, fingerprint, QR code, ID card reading module and other expansion module integration to realize the combination of multiple authentication methods.
● Dimensions: 1200mm long * 280mm wide * 980mm high (customizable size)
● Passage width: ≤550mm
● Box material: 304 stainless steel, top cover national standard 1.2mm body 1.0mm.
● Gate movement: hydraulic buffer semi-automatic three-roller gate movement
● Door opening method: manual push
● Turn rod material: 38mm diameter stainless steel round tube, improve contact comfort.
● Gate opening signal input: dry contact
● Response time: 0.2S
● Control interface: left opening, right opening, fire protection interface
● Passage rate: 20-60 people/minute, the actual passage rate is affected by the personnel situation and passage mode
● Work Power supply: AC220V, 50/60HZ
●Power of the whole machine: ≤75W, standby power <.10W
●Working temperature: -20℃~70℃
●Relative humidity: ≤90%, no condensation
●Applicable environment: indoor, outdoor (with canopy installed outdoors)
Precautions
One of the main components of pedestrian walkway products is stainless steel. Stainless steel has good rust resistance (ability to resist atmospheric oxidation) and corrosion resistance (ability to resist corrosion in media containing acid, alkali, and salt), but its corrosion resistance will change with its own chemical composition, use environment and other factors. In order to maintain the beauty of stainless steel and extend its service life, it needs to be maintained regularly.
Maintenance precautions are as follows:
1. Different specifications of stainless steel need to be selected in different use environments. 304 stainless steel can be selected in general environments, and 316 stainless steel is recommended for seaside, chemical plant and other environments.
2. Keep the product surface clean and dry.
3. When there is dirt on the surface of the product, it can be cleaned with non-woven cloth and alcohol.
4. When rust spots appear on the surface of the product, you can use a scouring pad (remember not to use a steel wire cleaning ball) to wipe back and forth along the grain until the rust spots are removed, and then wipe the entire gate with a non-woven fabric and stainless steel maintenance agent.
5. It is necessary to regularly wipe the gate with a non-woven fabric and stainless steel maintenance agent for maintenance. Generally, it is recommended to do it once a month, if the environment is relatively harsh (such as the seaside, chemical plant, etc.), it is recommended to do it once a week.
