Wing Gate KPS-TD303

KPS-TD-3201

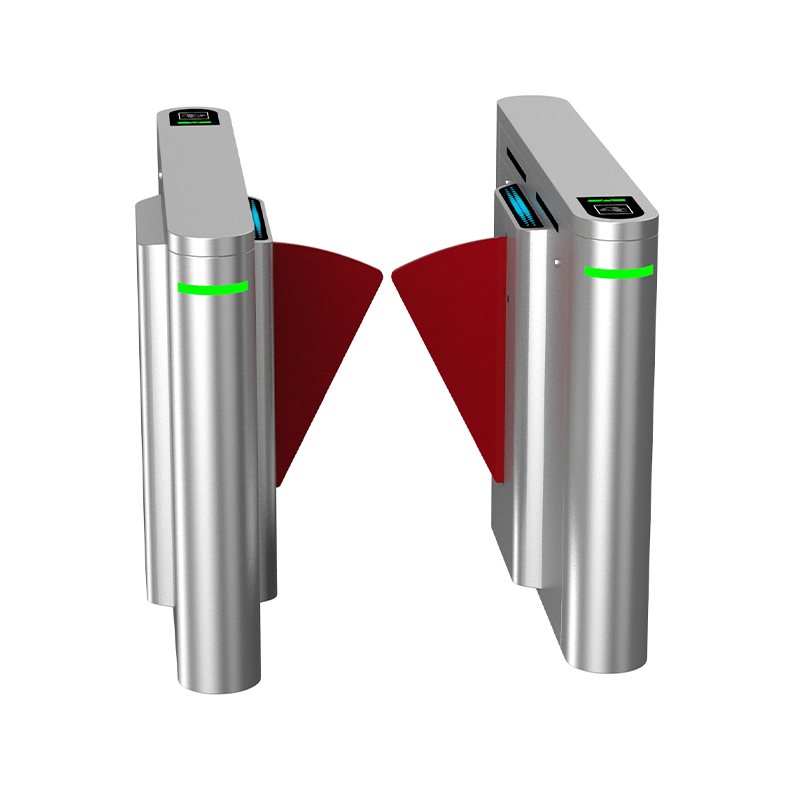

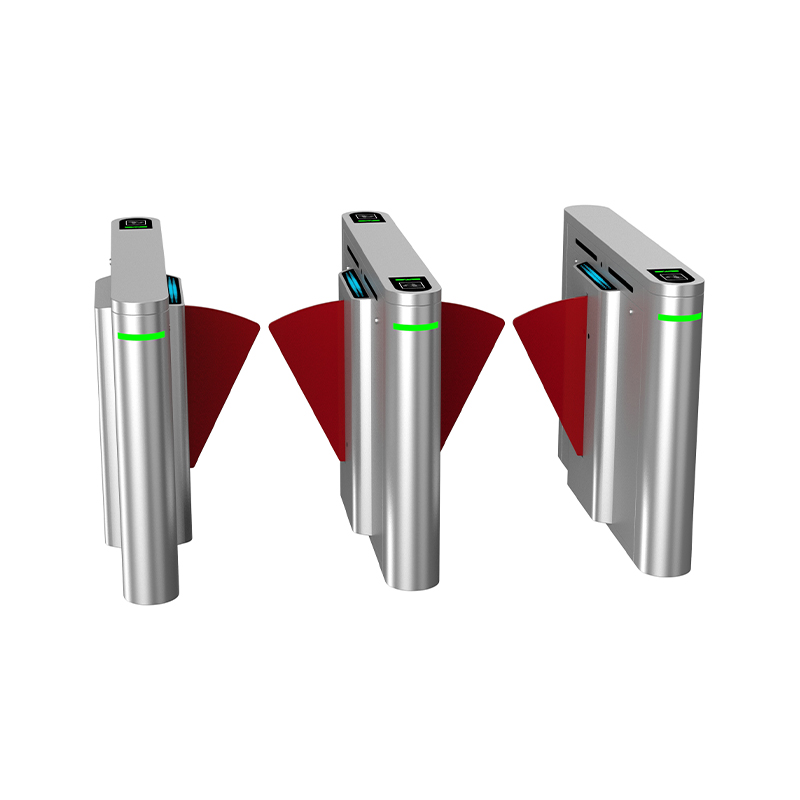

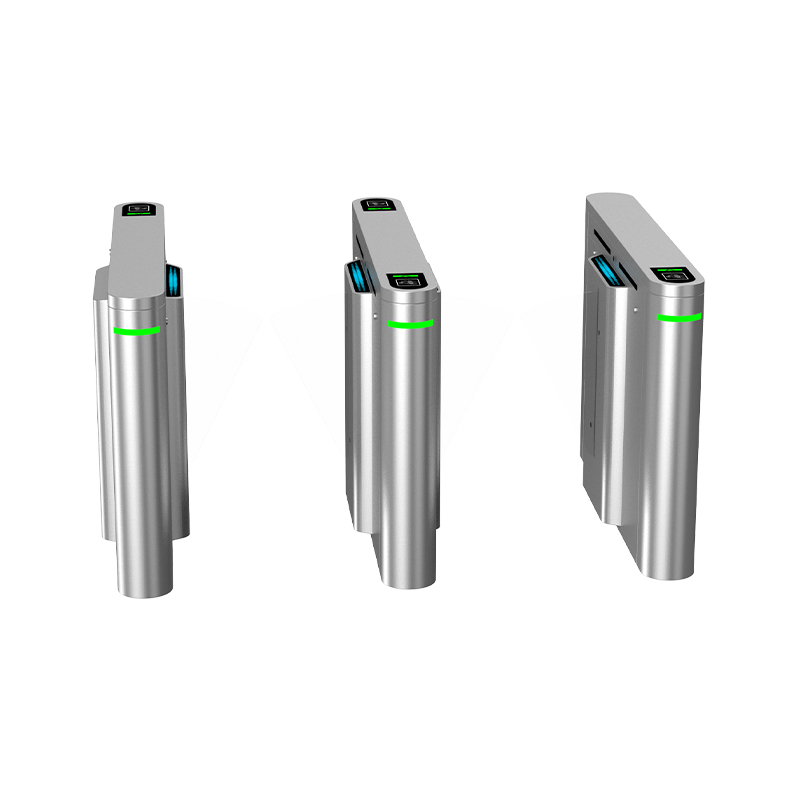

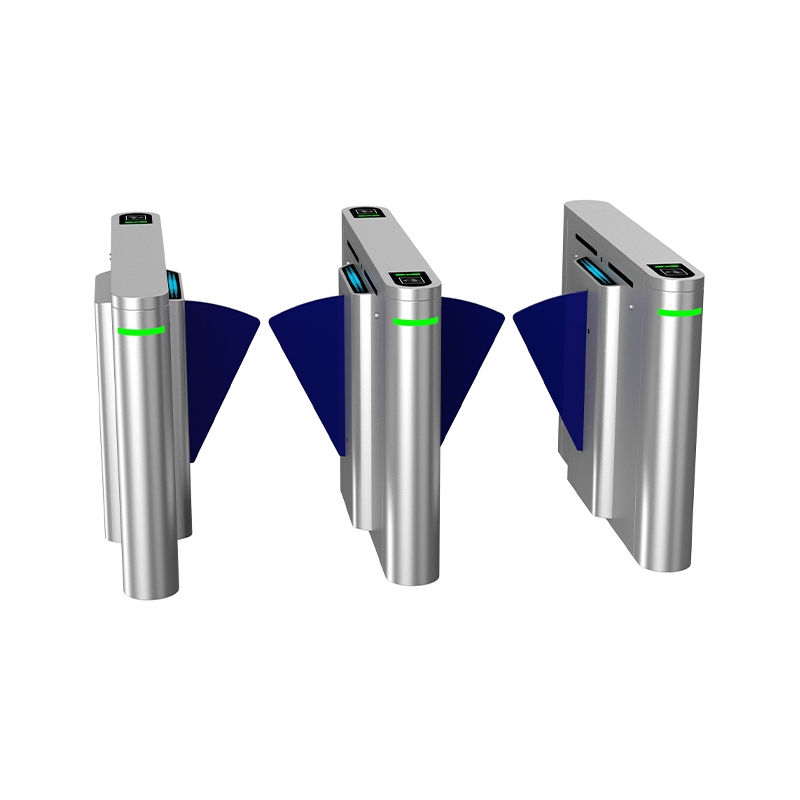

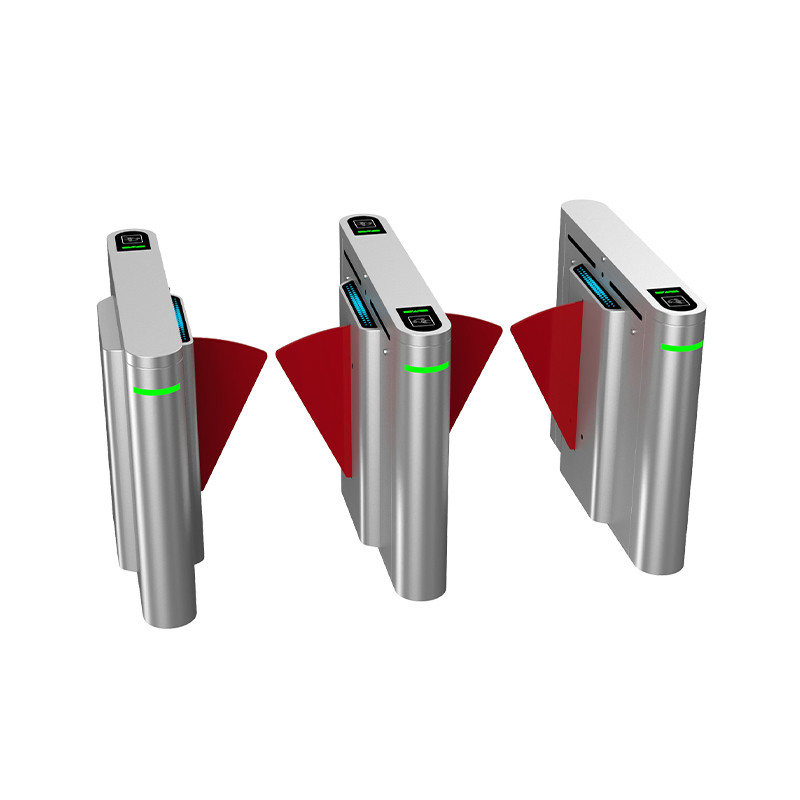

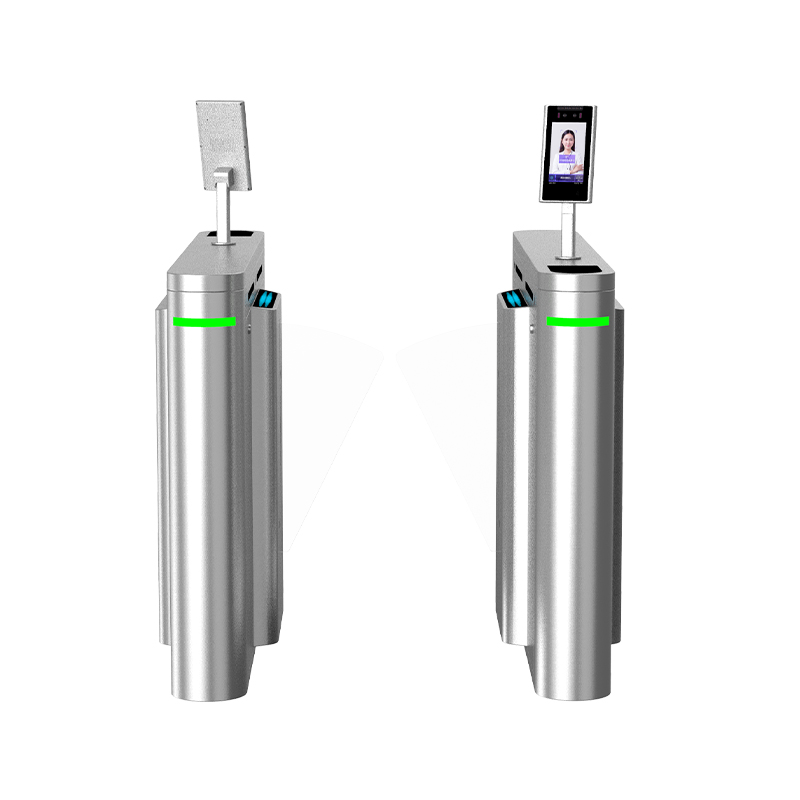

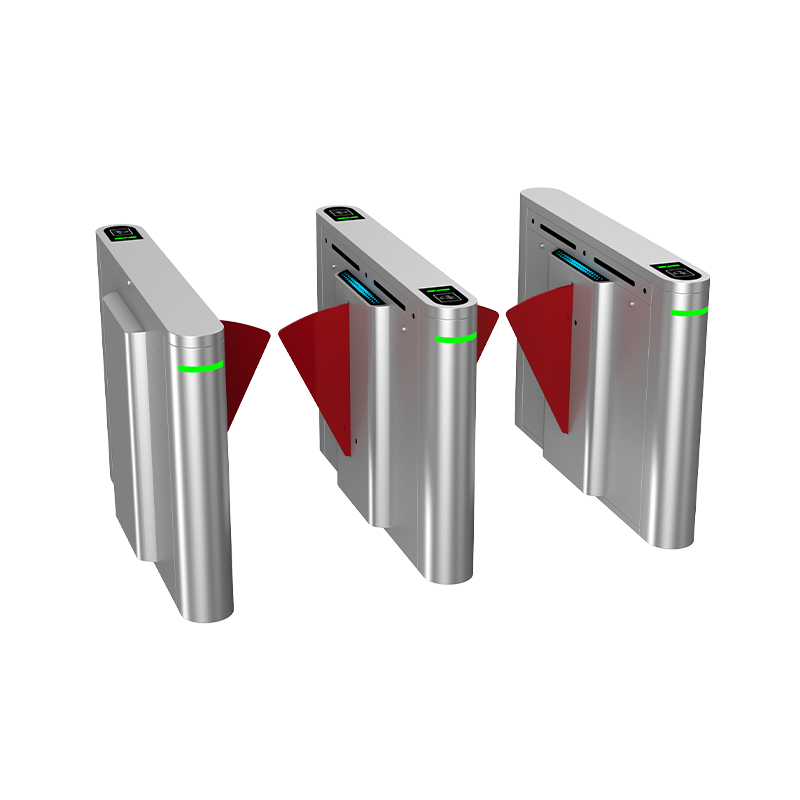

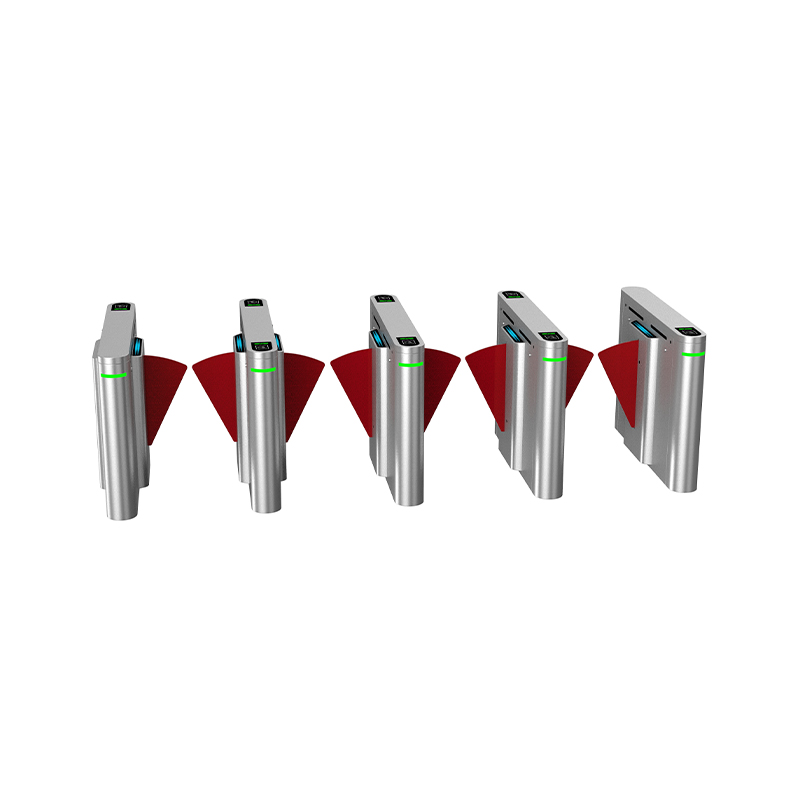

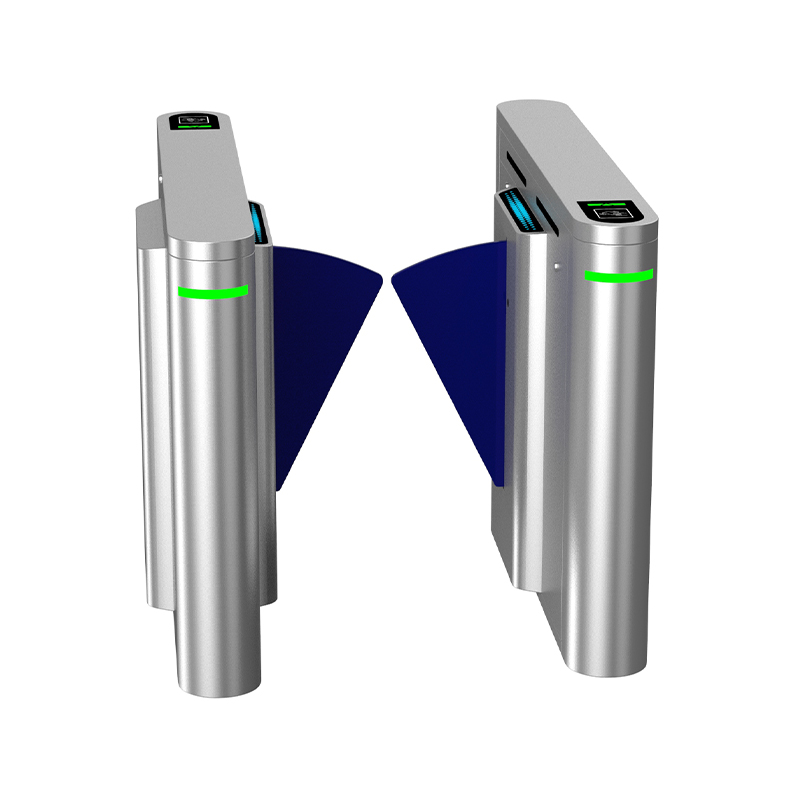

TD303 circular arc wing gate is stamped and formed by national standard 304 stainless steel plate, and adopts DC brushless motor. It is beautiful in shape, durable and not easily damaged by external forces. It supports various IC/ID card readers, ID card readers, QR codes, face recognition terminals, etc., and is easy to connect to the access control system. It is widely used in CBD business centers, neat office buildings, high-end residential areas, kindergartens and other pedestrian entrances and exits control.
Order model
Single-movement TD303D-14WB, dual-movement TD303S-14WB.

Consult

Features
Technical Indicators
Overall Dimension

●Material characteristics: The cover adopts the national standard 1.2mm, and the box adopts the national standard 1.0mm high-quality 304 stainless steel material, with a stable and sturdy structure. ●Motor type: The equipment adopts a brushless DC motor, self-checking on power-on, low failure rate and long service life. ●Sound and light alarm prompt function: The equipment uses LED to indicate the direction of passage and display the passage status. There are corresponding sound and light prompts for authorized passage and illegal intrusion. ●Anti-pinch function: It has an infrared anti-pinch function. When the infrared is blocked during the door wing reset, a sound alarm will be issued. ●Rebound function when encountering obstacles: It has a rebound function when encountering obstacles. When the door wing is reset, the motor automatically stops working to prevent injuries, when the swing door is closed, if the infrared is not triggered, it will rebound back to the open state when encountering obstacles. ●Anti-tailing function: The equipment uses 6 pairs of infrared detection sensors and anti-tailing tracking control technology. Only authorized personnel can pass. When unauthorized personnel break in, a sound alarm will be issued, and it can operate stably in complex environments such as sunny and rainy days without false alarms. ●Passage memory function: after multiple authentications, the passage will remember the number of people passing through, and the gate will be closed after all people have passed through, so that continuous and fast passage can be achieved. ●Delay reset function: if no one passes through within the specified time after the door is opened, the system will automatically cancel the user's access privileges for this time, and the access time can be set. ●Power-off access: after power failure, the door wing will automatically open, and people can pass freely to prevent panic and meet fire protection requirements. ●Multi-level anti-collision buffer function: when no door opening signal is received, illegal passage or gate rushing occurs, the gate bar will buffer the corresponding angle and start the immediate reverse thrust, and at the same time Start the alarm, which not only realizes humanized injury prevention, but also greatly reduces the mechanical damage caused by frequent or continuous collisions, and prolongs the service life of the movement. ●Personalized voice setting: There are multiple voices to set, which is convenient for customers to play specific voices after swiping the card in different places. ●Multiple passage mode selection: Supports two-way controlled passage or controlled induction and outflow, and can also set the swing door opening and closing speed according to the flow of people to improve the working efficiency of the equipment. ●The equipment supports the function of counting people, which can be counted separately for the in and out directions. ●Fire linkage: After the fire signal is triggered, the gate will automatically open for emergency evacuation. ●Simple master-slave design: Only 4 wires are required between the host and the slave, which is convenient for on-site personnel to construct and debug. ●Built-in leakage protector, enhances personal safety protection, and facilitates on-site personnel to construct and wire. The working voltage of the relevant electrical modules of the whole machine does not exceed 24V. ●Optional wireless receiver, used with the remote control, can realize peak normal open mode, single gate opening in, and single gate opening out.
■Size: 1200mm long*300mm wide*1000mm high
■Channel width: 600mm
■Material of cabinet: 304 stainless steel, top cover national standard 1.2mm, body national standard 1.0mm.
■Material of door wing: acrylic
■Physical interface: RS485, left opening, right opening, fire protection interface
■Number of infrared detection pairs: 6 pairs
■Traffic rate: 20-60 people/minute, actual traffic rate is affected by personnel situation and traffic mode
■Working power supply: AC220V, 50/60H Z
■Power of the whole machine: single channel (one group of channels) power ≤180W, standby power <10W
■Working temperature: -20℃~70℃
■Relative humidity: ≤95%, no condensation
■Applicable environment: indoor and outdoor

Precautions
One of the main components of pedestrian walkway products is stainless steel. Stainless steel has good rust resistance (ability to resist atmospheric oxidation) and corrosion resistance (ability to resist corrosion in media containing acid, alkali and salt), but its corrosion resistance will change with its own chemical composition, use environment and other factors. In order to maintain the beauty of stainless steel and extend its service life, it needs to be maintained regularly.
Maintenance precautions are as follows:
1. Different specifications of stainless steel need to be selected in different use environments. 304 stainless steel can be selected in general environments, and 316 stainless steel is recommended for seaside, chemical plant and other environments.
2. Keep the product surface clean and dry.
3. When there is dirt on the surface of the product, it can be cleaned with non-woven cloth and alcohol.
4. When rust spots appear on the surface of the product, you can use a scouring pad (remember not to use a steel wire cleaning ball) to wipe back and forth along the grain until the rust spots are removed, and then wipe the entire gate with a non-woven fabric and stainless steel maintenance agent.
5. It is necessary to regularly wipe the gate with a non-woven fabric and stainless steel maintenance agent for maintenance. Generally, it is recommended to do it once a month, if the environment is relatively harsh (such as the seaside, chemical plant, etc.), it is recommended to do it once a week.
