Speed Gate KPS-TD501

KPS-TD-3801

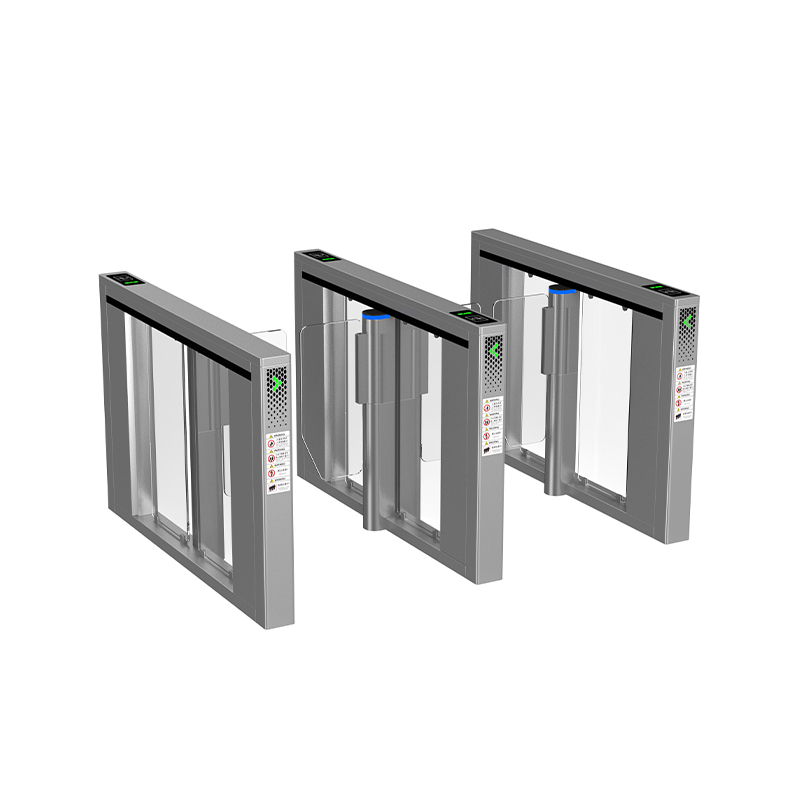

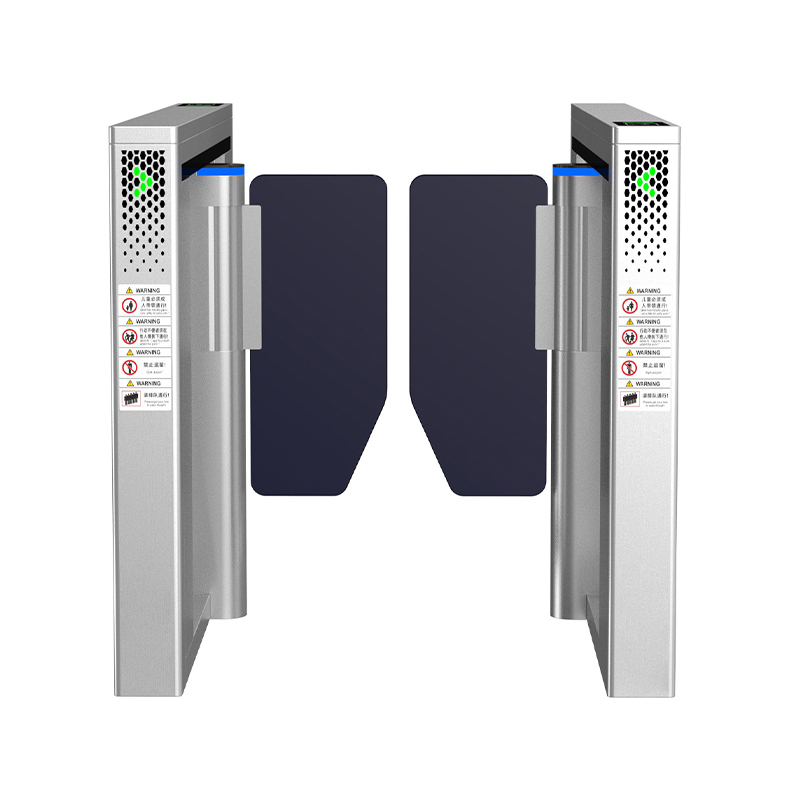

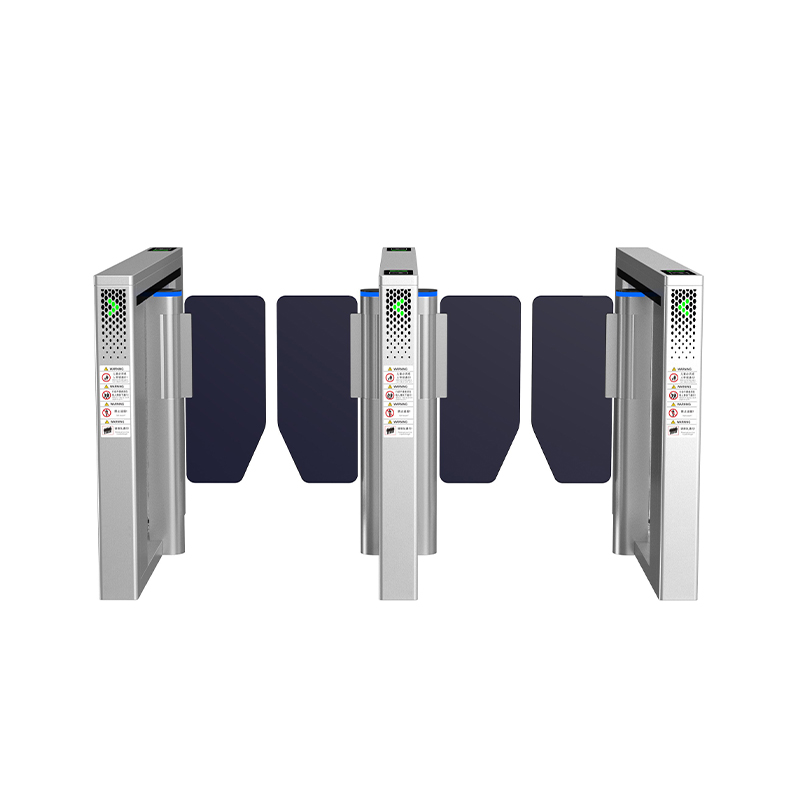

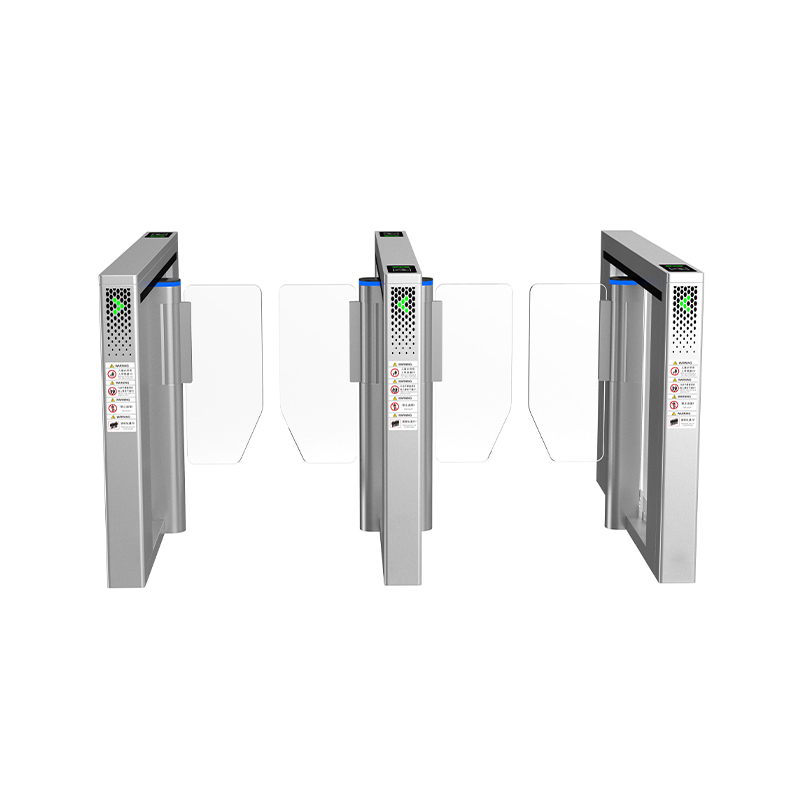

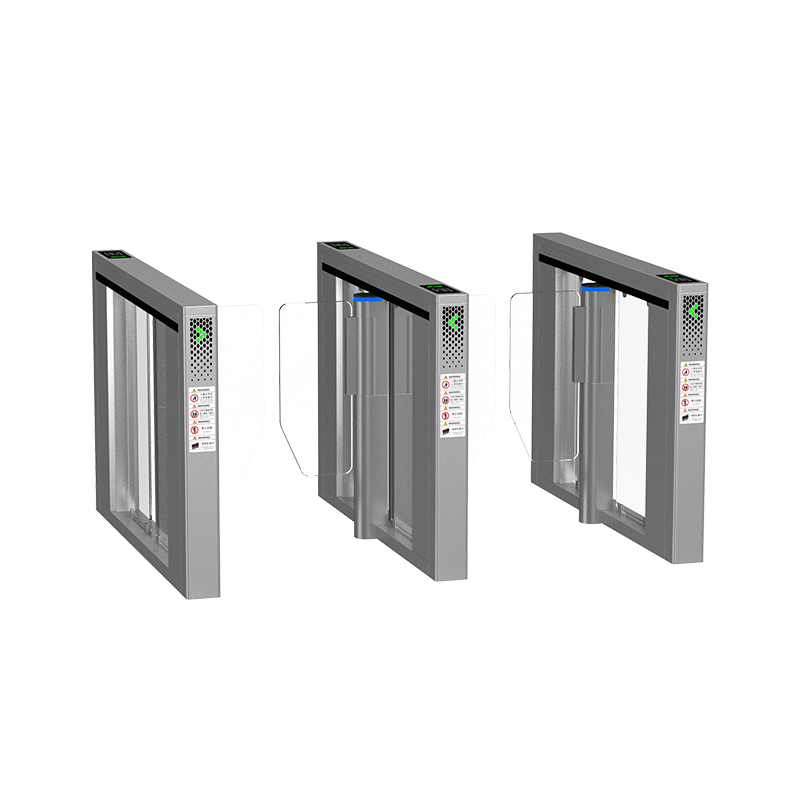

TD501 speed gate is stamped with national standard 304 stainless steel plate and adopts DC brushless motor. It is beautiful, durable and not easily damaged by external forces. It supports various IC/ID card readers, ID card readers, QR codes, face recognition terminals, etc., and is easy to connect to the access control system. It is widely used in CBD business centers, neat office buildings, high-end residential areas, kindergartens and other pedestrian entrances and exits control.
Order model
Single-core TD501D-14, dual-core TD501S-14

Consult

Features
Technical Indicators
Overall Dimension

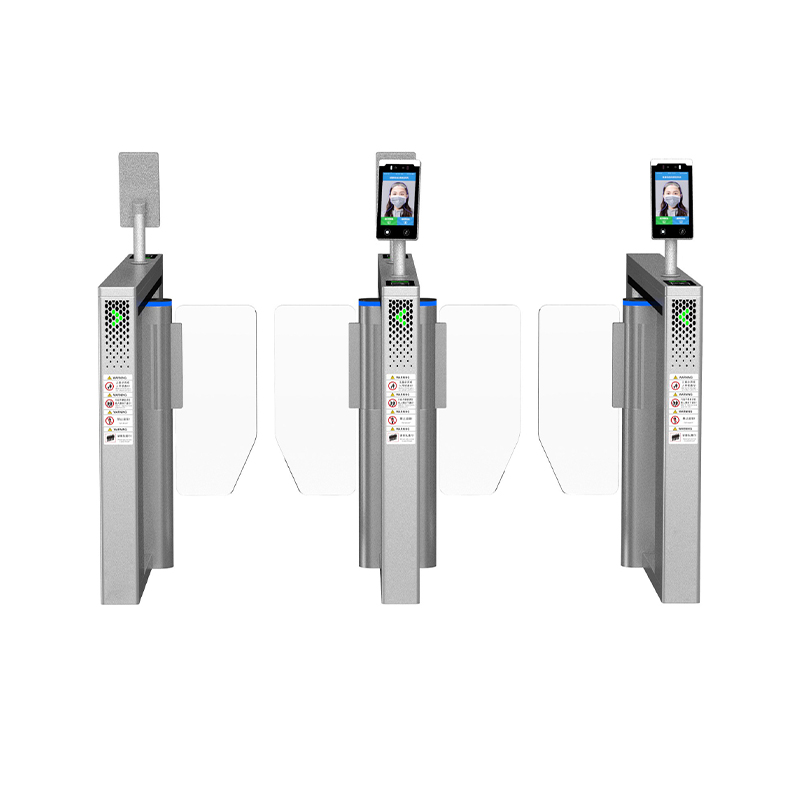

●Material characteristics: The whole box is made of national standard 1.2mm high-quality 304 stainless steel material, with a stable and solid structure. ●Process structure: The whole machine adopts the planing process, with small gap spacing and exquisite workmanship, outdoor waterproof structure design, can be used indoors and outdoors. The upper cover is turned inward, which is convenient for installing face recognition against the wall. ● Motor type: The movement adopts DC brushless movement, self-checking on power-on, low failure rate and long service life. ● Sound and light alarm prompt function: The equipment uses LED to indicate the direction of passage and display the passage status. There are corresponding sound and light prompts for authorized passage and illegal intrusion. ● Anti-pinch function: It has infrared anti-pinch function. When the infrared is blocked during the closing process of the swing door, a sound alarm will be issued. ● Obstacle rebound function: It has an obstacle rebound function. When the door wing encounters an obstacle during the reset process, the motor automatically stops working to prevent injuries, when the swing door is closed, if the infrared is not triggered, it will rebound back to the open state when encountering an obstacle. ● Anti-tailing function: The equipment adopts 6 pairs of infrared protection and adopts anti-tailing tracking control technology. Only authorized personnel can pass. When unauthorized personnel break in, a sound alarm will be issued, and it can operate stably in complex environments such as sunny and rainy days without false alarms. ●Passage memory function: after multiple authentications, the passage will remember the number of people passing through, and the gate will be closed after all people have passed through, so that continuous and fast passage can be achieved. ●Automatic reset function: if no one passes through within the specified time after the door is opened, the system will automatically cancel the user's access privileges for this time, and the access time can be set. ●Power-off access: after power is off, the door wing will automatically open, and people can pass freely to prevent panic. ●Brake lock anti-collision function: when no door opening signal is received, illegal passage or gate rushing occurs, a high-precision clutch device is used, and the swing arm will deviate to the set angle after being hit, and the brake will be locked. Automatic reset, start the alarm at the same time, while realizing humanized injury prevention, it also greatly reduces the mechanical damage caused by frequent or continuous collisions, and prolongs the service life of the movement. ● Personalized voice setting: There are multiple voices to set, which is convenient for customers to play specific voices after swiping the card in different places. ● Multiple passage mode selection: Supports two-way controlled passage or controlled induction and out, and can also set the swing door opening and closing speed according to the flow of people to improve the working efficiency of the equipment. ● The equipment supports the function of counting people, which can be counted separately for the entry and exit directions. ● Fire linkage: After the fire signal is triggered, the gate will automatically open for emergency evacuation of personnel. ● Easy maintenance: The door wing adopts a clamp design, which makes the door wing replacement more convenient and convenient for subsequent equipment maintenance. ● Simple master-slave design: The brushless master controller adopts 1 control 1 control mode, and only 4-core connection lines are required between the host and the slave, which is convenient for wiring construction and later maintenance. ● Comes with a leakage protector to enhance personal safety protection and facilitate on-site personnel to construct and wire. The working voltage of the relevant electrical modules of the whole machine does not exceed 24V. ●Optional wireless receiver, used with remote control, can realize peak normal opening mode, single entry opening, and single exit opening.
■Size: 1400mm long*120mm wide*1000mm high, 80mm protruding from the core
■Channel width: 550-1200mm
■Material of cabinet: 304 stainless steel, national standard of the whole machine 1.2mm.
■Gate material: acrylic
■Physical interface: RS485, left opening, right opening, fire protection interface
■Number of infrared detection pairs: 6 pairs of infrared detection sensor protection as standard (expandable to 14 pairs).
■Average number of trouble-free operations: ≥5 million times
■Traffic rate: 20-60 people/minute, actual traffic rate is affected by personnel conditions Conditions and traffic patterns
■Working power supply: AC220V, 50/60HZ
■Power of the whole machine: single channel (one group of channels) power ≤180W, standby power <18W
■Working temperature: -20℃~70℃
■Relative humidity: ≤95%, no condensation
Precautions
One of the main components of pedestrian walkway products is stainless steel. Stainless steel has good rust resistance (ability to resist atmospheric oxidation) and corrosion resistance (ability to resist corrosion in media containing acids, alkalis, and salts), but its corrosion resistance will change with its own chemical composition, use environment and other factors. In order to maintain the beauty of stainless steel and extend its service life, it needs to be maintained regularly.
Maintenance precautions are as follows:
1. Different specifications of stainless steel need to be selected in different use environments. 304 stainless steel can be selected in general environments, and 316 stainless steel is recommended for seaside, chemical plant and other environments.
2. Keep the product surface clean and dry.
3. When there is dirt on the surface of the product, it can be cleaned with non-woven cloth and alcohol.
4. When rust spots appear on the surface of the product, you can use a scouring pad (remember not to use a steel wire cleaning ball) to wipe back and forth along the grain until the rust spots are removed, and then wipe the entire gate with a non-woven fabric and stainless steel maintenance agent.
5. It is necessary to regularly wipe the gate with a non-woven fabric and stainless steel maintenance agent for maintenance. Generally, it is recommended to do it once a month, if the environment is relatively harsh (such as the seaside, chemical plant, etc.), it is recommended to do it once a week.
