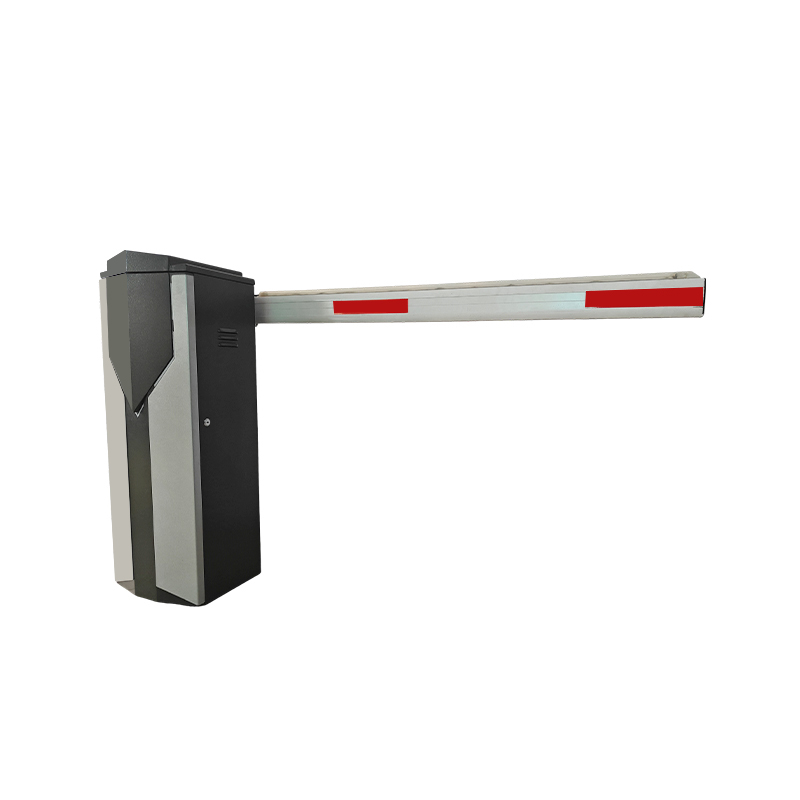

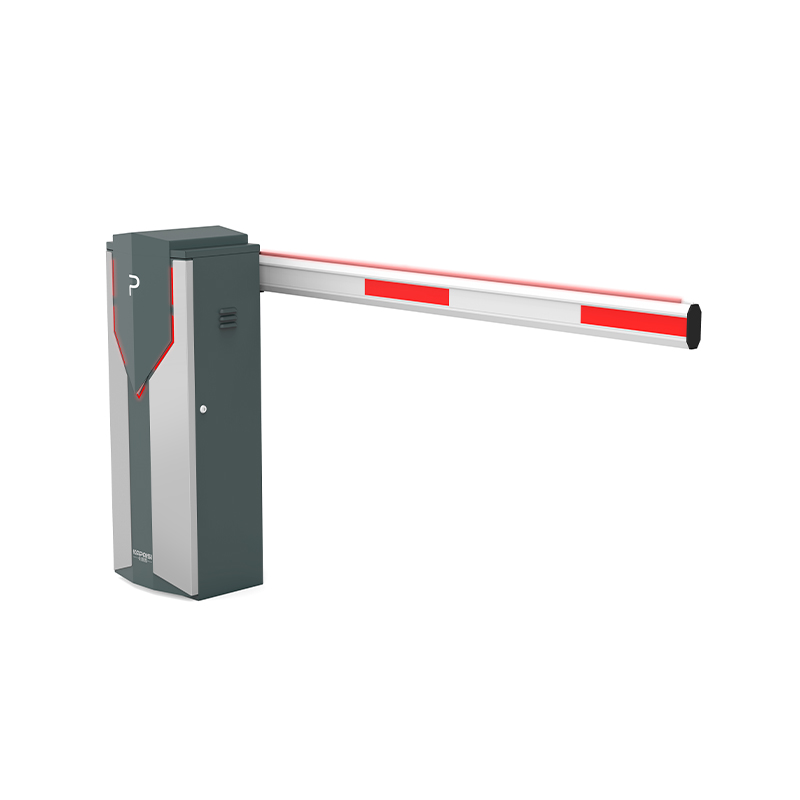

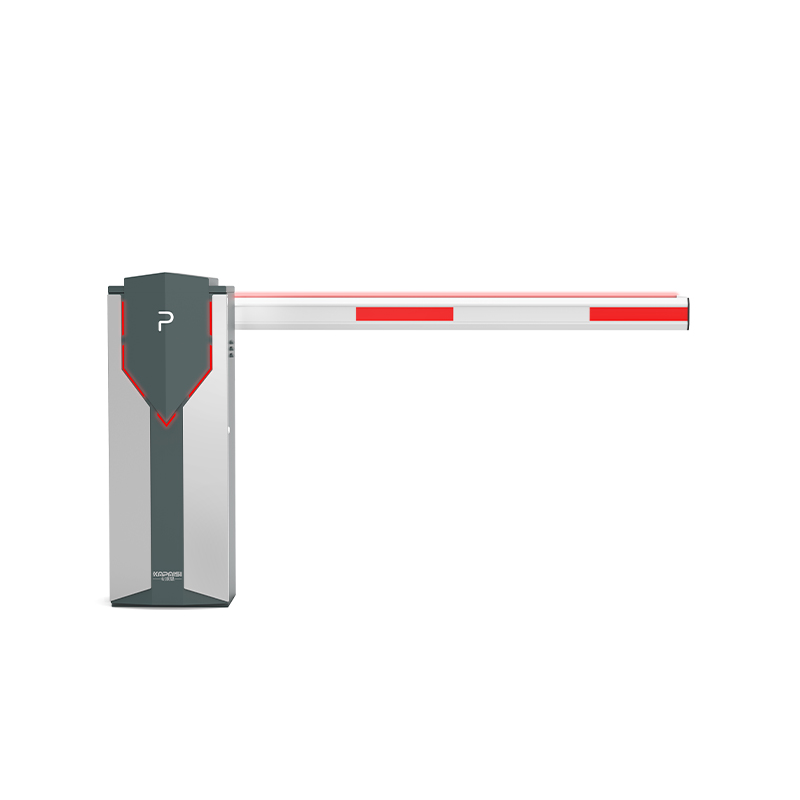

Smart Gate HNA K1000A-873-D01

HNA K1000A-873-D01
Product Overview
1) The movement is installed by side fixation, featuring a compact structure.
2) The main body of the movement is made of aluminum alloy through die-casting process, with an integrated structure that is small in size, reliable in mechanical strength, and fast in heat dissipation.
3) The movement adopts helical gear reduction transmission, which is highly efficient, stable in performance, and causes little power output loss; the gears undergo carburizing heat treatment, high-precision gear grinding, and are shock-resistant, ensuring a long service life.
4) It is a DC brushless movement with low heat generation, stable transmission, and large output torque. Through the driver, speed regulation, buffer deceleration during the lifting and lowering of the barrier can be achieved, ensuring smooth and stable operation.
5) The motor uses a safe 24V DC voltage, which is safer compared to traditional AC motors.

Consult

Features
Technical Indicators

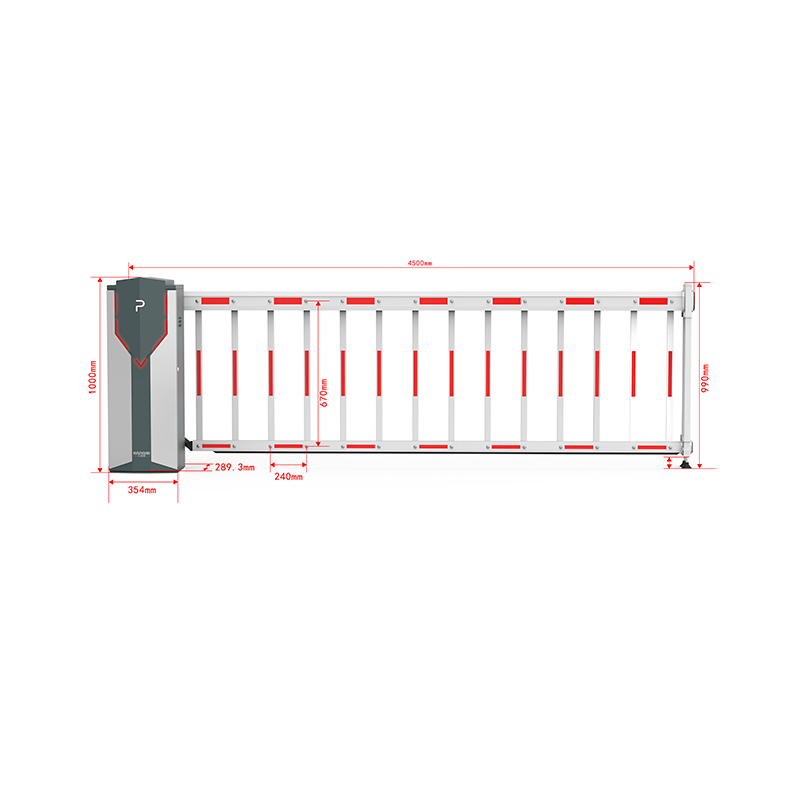

Overall Dimension

General Technical Conditions Normal Insulation Resistance: The motor insulation resistance shall not be lower than 100MΩ. Electrical Strength: The conductive parts of the motor and the housing bracket shall withstand 700V/S without breakdown. Motor Temperature Rise: ≤75K. Motor Noise: ≤55dB. Working Temperature & Humidity: -35℃ to 80℃, humidity ≤90% (no condensation). Altitude: Within 1000 meters.
Parameter Specification Working Power Supply AC220V ± 10% 50Hz Working Temperature -40°C - +85°C Working Frequency 433HZ Remote Control Distance Less than or equal to 30 meters Motor Power 24V DC 150W brushless DC motor Lifting Time 1.5S - 6S adjustable Pole Height 830MM Chassis Thickness 1.5MM Direction Left and right can be swapped Remote Learning Support code copying of 6 different codes, no upper limit for duplicate codes Case Color Gray Optional Pole Types 1 - 6 meters optional (straight pole / barrier gate / curved pole / oval pole / water cut (4 meters))

Parameter	Specification
Working Power Supply	AC220V ± 10% 50Hz
Working Temperature	-40°C - +85°C
Working Frequency	433HZ
Remote Control Distance	Less than or equal to 30 meters
Motor Power	24V DC 150W brushless DC motor
Lifting Time	1.5S - 6S adjustable
Pole Height	830MM
Chassis Thickness	1.5MM
Direction	Left and right can be swapped
Remote Learning	Support code copying of 6 different codes, no upper limit for duplicate codes
Case Color	Gray

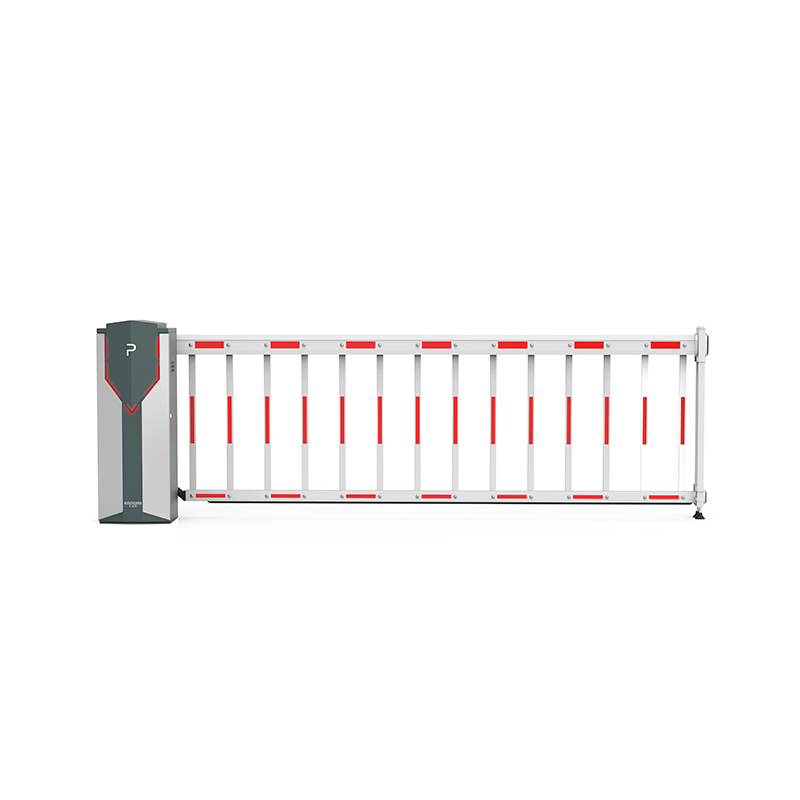

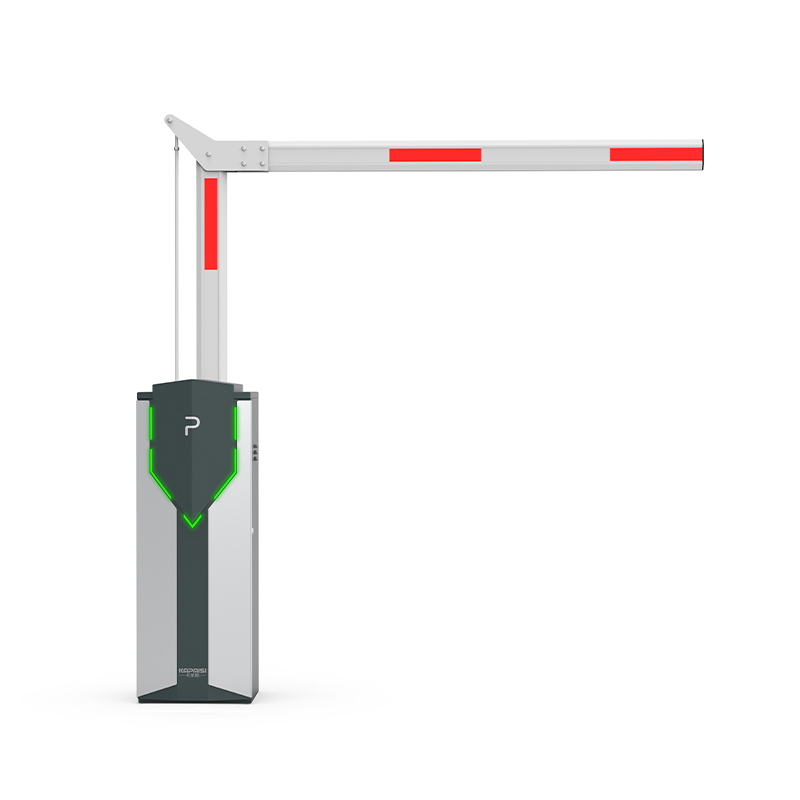

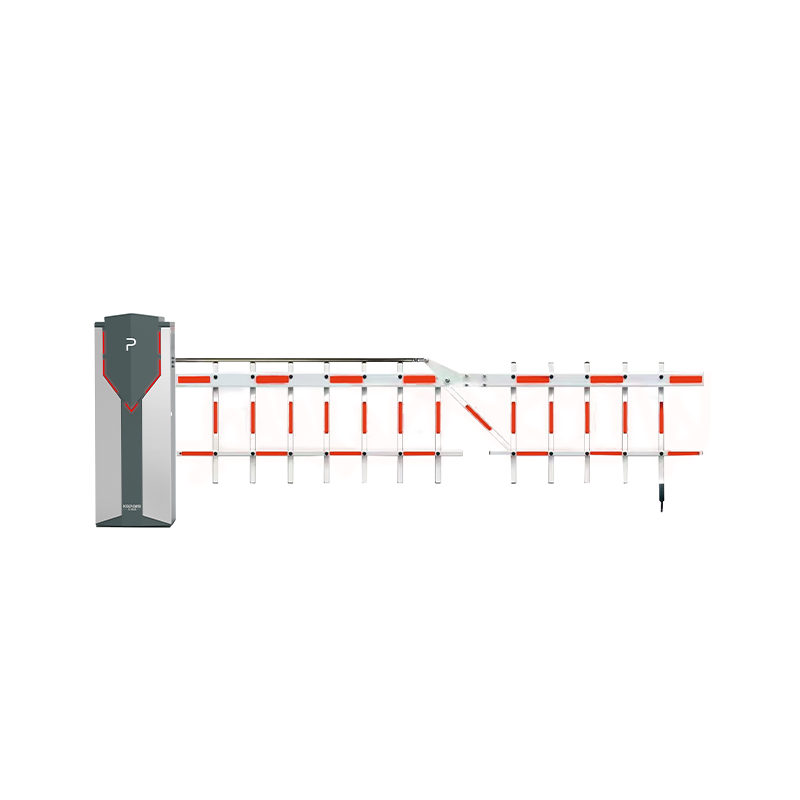

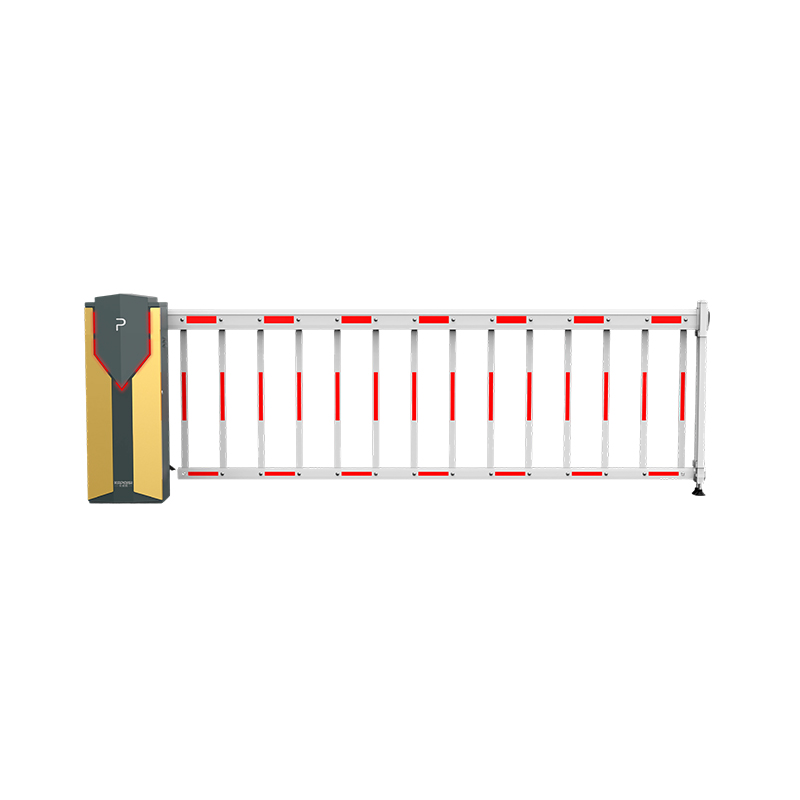

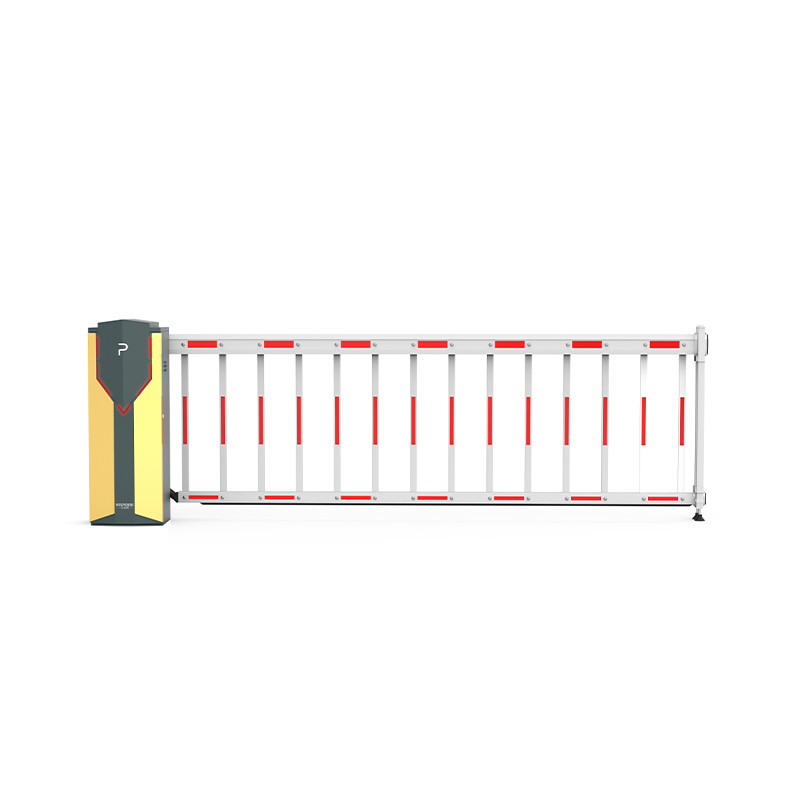

Optional Pole Types	1 - 6 meters optional (straight pole / barrier gate / curved pole / oval pole / water cut (4 meters))
